PE Jaw Crusher

Type:Primary Crusher
Input Size: 200-1200mm
Capacity: 5t/h-500t/h
Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, limestone, granite, basalt, minerals, quartz, diabase, etc.
Applications:
Mining, metallurgy, construction, highway, railroad, building material, chemical and water conservancy, etc.

+86-199 3788 6868 info@dmroad.com

Features
Technical Data
Application
Services

1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing.
3. The crushing chamber uses "V"-shaped structure, so that the feeding size equal to the nominal one.
4. The crushing chamber is deep and without dead zone, increases the capacity and the output.
5. Lubrication system is safe and reliable, convenient to replace parts, easy to maintain.
6. The outlet employs shim adjustment system, convenient and reliable, and increase the flexibility of the equipment.
7. Low noise, less dust.
Jaw crusher process these materials:

River pebbles usually jaw crusher, cone crusher and sand making machine processed into

Limestone is the most widely distributed stone crushing, sand, after milling can be used in building materials, chemicals, huge market space.

Because of the different grades of iron ore hardness differences, recommended the use of iron ore crushing equipment jaw crusher and cone crusher, equipment operation and stability, strong crushing capacity, high capacity.

Basalt hard wear, often used jaw crusher, cone crusher processed into stone, can also be equipped with sand making production

Model	Size of Opening (mm)	Max Feed Size(mm)	Discharge Range Opening (mm)	Capacity (m³/h)	Motor (kw)	Weight (t)
PE150x250	150x250	125	10-40	5-6	5.5	1.3
PE250x400	250x400	210	20-80	10-11	18.5	2.3
PE-400×600	400×600	340	40-100	10-35	30	6.5
PE-500×750	500×750	425	50-100	25-60	55	10.6
PE-600×900	600×900	500	65-180	30-85	55-75	15.5
PE-750×1060	750×1060	630	80-180	72-150	90-110	28
PE-800×1060	800×1060	680	100-200	85-143	90-110	30
PE-870×1060	870×1060	750	170-270	145-235	90-110	30.5
PE-900×1200	900×1200	780	95-255	100-240	110-132	49
PE-1000×1200	1000×1200	850	195-280	190-275	110-132	51
PE-1200×1500	1200×1500	1020	150-300	250-500	200-220	100.9

1.PE.jpg 2.PE.jpg

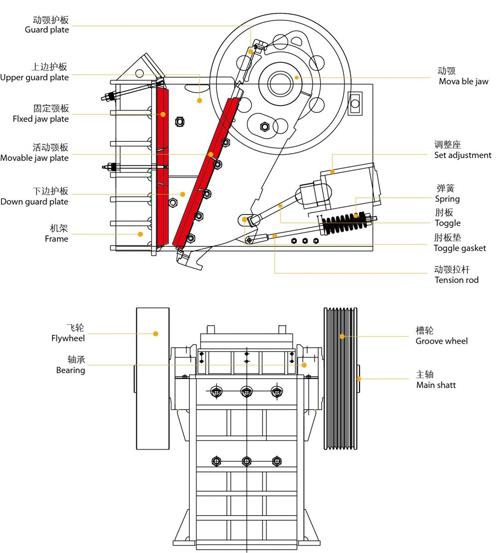

Working Principle:

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the lower outlet of the crushing cavity.

Supply the most current design and technical expertise;Supply parts sales and training service far beyond the initial sale;Your profits with quality parts and expert service.
