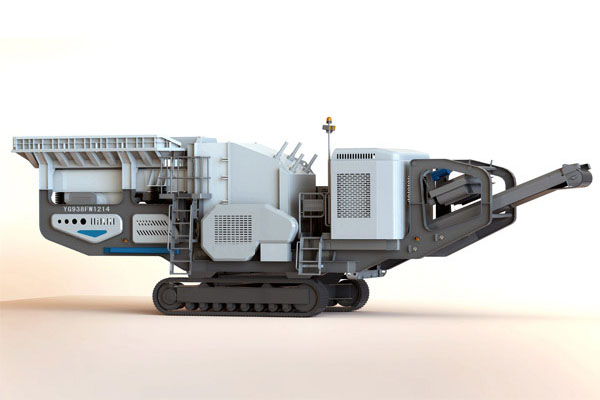

TP-PF Mobile Impact Crushing Plant

Type: Tracked Primary Crusher
Input Size: 400-100 mm
Capacity: 50-400 TPH
Processed Materials: River pebble, limestone, granite, basalt, quartz,diabase, andesite, gravel, mineral, etc.
Applications: Widely used in construction waste, mine, mining, sand and cement companies.

+86-13523011655 info@dmroad.com

Features
Technical Data
Application
Services

1. Fuel oil saving rate can reach 25%, and the sieving mode is not only in line with environmental protection but low cost;
2. Convenient transport, no harm to road, multifunctional equipments and wide application scope;
3. Turning in place with the capability of all-wheel drive, standard configuration, fast equipment changing, perfect protection system, best fit in narrow and complicated terrains;
4. Light weight, small size and best fit in narrow place;
5. The moving screen equipment uses double-deck sieving machinery, which main frame equipped with excellent grid screening gallery, can stand freely without support;
6. The attaching power package is the most optimized design;
7. Mechatronic-hydraulical integrated multifunctional construction machinery and highly constructed with the small, medium and large size;
8. Eco-friendly concept of Mobile Crushing Plant;
9. Noise collecting system, sound-proof system, compact and flexible equipment can further meet construction waste crushing work between cities. Suitable diesel noise pollution discharge system, effective dedusting system and release system can remote control the barriers in the portable crushing and screening plant while the pre-screening system can greatly increase crushing efficiency.

TP-PF Series Mobile Impact Crushing Plant	TP-PF1007	TP-PF 1415
Feed Opening Size(mm*mm)	720*400	1160*1550
Max Edge Length In One Direction(mm)	800	1000
Crushing Capacity(t/h)	up tp 300	up to 650
Drive	diesel-direct	diesel-direct
Driving Unit	-	-
Engine	CAT C9	CAT C18
Power (kw)	242	470
Feed Hopper	-	-
Hopper Volume (m³)	4.8	8.5
Grizzly Feeder with Pre-screening(two-deck)	-	-
Drive	hydraulic	hydraulic
Crawler Unit	-	-
Drive	hydraulic	hydraulic
Permanent Magnetic Separator	-	-
Magnetic Separator	option	option
Dimensions and Weights	-	-
Working Dimensions	-	-
Length (mm)	14600	18000
Width (mm)	4500	6000
Height (mm)	4200	4800
Transport Dimensions	-	-
Length (mm)	13300	17000
Width (mm)	3350	3730
Height (mm)	3776	4000

The portable crawler crushing & screening plant, made by DMAC, is a new kind of high efficient crushing equipment, which is of advanced technology, fully featured and can be driven by itself. The deft design of crawler enables it to reach any possible spot of the work site even under horrible terrain condition. The flexibility helps to eliminate unnecessary processes and makes it more convenient in the coordination of accessory machineries and crushing plant. As excellent and integrated design as it is, this plant can be easily transmitted to work site on a trailer and starts working once gets to the spot.
The portable crawler jaw plant, meeting the technical qualification, has the features of high productivity, crushing ratio and uniformed product size.
Mobile Crushing Plant Application:
1. It is widely used in the field of mining, coal mine and construction waste recycling, and performs well on the site of earthwork, urban infrastructure construction, road construction and construction field;
2. Portable crawler crushing and screening plant has the feature of multifunction operation;
3. Processing topsoil and other materials, separating viscous concrete aggregate, applicable for construction and demolition industry, quarrying industry and screening after crushing.

  Supply the most current design and technical expertise
  Supply parts sales and training service far beyond the initial sale
  Your profits with quality parts and expert service
